C1.0-1.5 VNA Truck

Very narrow aisle man up turret truck

The toughest and most reliable very narrow aisle (VNA) truck in the industry.


  • QUAD-form mast design
  • High-performance motor
  • Operator-friendly design
  • Low cost of ownership
  • Easy maintenance
Model and capacity
C1.3 – 1300 kg
C1.5 L – 1500 kg
C1.3 L – 1300 kg
C1.0 – 1000 kg
C1.5 S – 1500 kg
C1.3 80 – 1300 kg
C1.5 M – 1500 kg
Industry solution

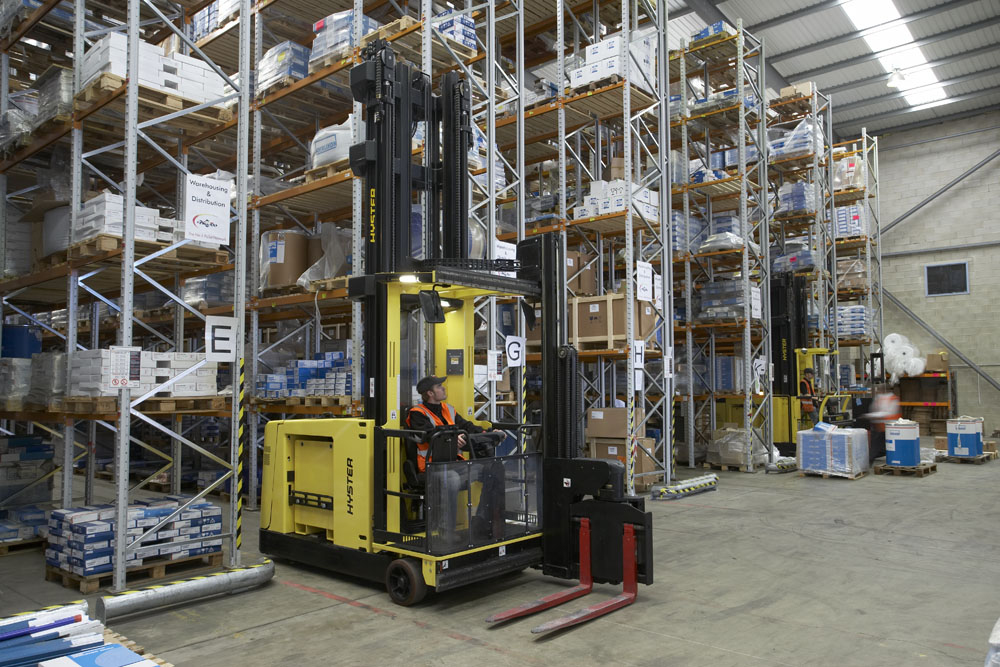

Designed for high density operations where reach is king and space is at a premium, such as warehouses and logistics centres.

Contact us
QUAD-Form must design

The patented QUAD-form mast design gives increased rigidity and torsional strength. It also eliminates the need for additional support or bracing.

Strength and stability at such high levels is vital is vital, the QUAD-form mast is capable of lifting up to 17,000mm height, with minimum mast deflection. It’s remarkable load stability is provided by one of the smallest, but strongest turret head designs in the industry.

The VNA truck has been tested through intense cycles including stress analysis, endurance, thermal and stability tests. They have also been heavily tested and proven in the field across a wide range of customer applications.

High performance motor

A 30kW motor provides industry-leading levels of performance. Standard load weight sensing further enhances this by calculating the optimal speed based on height and weight.

Operator-friendly design

Built around operator needs, the truck provides a comfortable driving experience and maximum handling efficiency. The spring-loaded seat returns to centre, rotates and can be easily adjusted to suit a wide range of operator weights.

Cabin space is maximised for comfort with more leg room. Forward-mounted with 3-way adjustable controls; seat-side controls, specifically designed for an intensive pallet handling environment.

The operator controls are fully adjustable allowing for standing and seated positions and infrared sensors detect operator presence, avoiding the need for continual pressure on a button and the patented large foot sensor gives the driver maximum freedom of movement.

Maximum flexibility is provided through the slim turret head allowing the truck to work in very narrow aisle. An integral pantograph on the turret head, excellent fork tip visibility improves handling and controllability.

Low-cost of ownership

Whilst the efficient energy management system keeps the truck working through extended shift.

A wide range of truck configurations and options allows the customer to select the most productive and cost efficient model for any application.

Easy maintenance

The VSM delivers diagnostic data to the dash display, enabling operators to anticipate maintenance needs and quickly carry out fault diagnosis.

1000-hour service intervals and Electric Truck AC Control (ETACC) PC-based diagnostic tool speeds up maintenance and improve uptime.
